The R7 Series LED bulb is a versatile lighting solution fit for headlights, fog lights, and DRL.

MAIN FEATURES

6 LIGHTING COLORS & 4 MODES

6 different light colors change: red, yellow, green, blue, white, and purple.
4 lighting modes switching: breathing, cycling, flashing, and red & blue emergency mode.

DUAL LIGHT SOURCES

Headlight Source: Equipped with 3570 LED bulbs,70W 25000LM per set light output, 6500K cool white visibility, ensures excellent visibility on the road.
RGB Source: Offers a range of colors including red, green, blue, yellow, purple, and white.

REMOTE CONTROL FUNCTIONALITY

The R7 Series LED bulb comes with a convenient remote control for easy operation. Users can adjust the lighting modes and colors at the touch of a button.
Color Key: With a single press, the bulb's color can be changed to red, green, blue, yellow, purple, or white.
Mode Key: A single press allows users to switch between breathing, flashing, color cycling, and red & blue flashing modes.
NO/OFF: The bulb features a memory function that recalls the last mode used, providing a seamless user experience.

1:1 PERFECT BEAM PATTERN

RGB LED headlight bulb has a precisely 1:1 original halogen filament position beam design, featuring 360° full illumination, which provides optimal and super-focused beam pattern.
No dark spots and shadows, no blinding or glare to oncoming traffic, safer and reliable.

EFFICIENT COOLING SYSTEM

The All-in-one 3570CSP & RGB LED Chips + Liquid Coolight Copper Heat Pipe + 6063 Aluminum Material + 15,000 RPM Silent Fan form an efficient heat dissipation system that extends the life of the bulb to 50,000 hours.

PLUG AND PLAY, EASY INSTALLATION

Non-polarity socket, plug and play. Just connect the bulb to the RGB control box, and the other two wires of the RGB control box are connected to the battery power supply: red wire is connected to ACC(+)and the black wire is connect to VCC(-).

FIT ANY WEATHER CHANGE

Whether in clear night or rain, fog, snow, and other bad weather can be used effectively. Waterproof, dustproof, shockproof, and corrosion resistant to an IP68 rating, allowing you to see further and clearer for safer driving.

SPECIFICATIONS

LED Type: 3570 CSP LED Chip
Efficacy(2/pcs): 70W
LED Quantity(per bulb):
12pcs headlight source+8pcs RGB light source(H11, 9005, 9006, 9007, H7)
24pcs headlight source+8pcs RGB light source(H4）
Effective Lumen(2/pcs): 25000 LM
Current Draw: 2.5A (±0.2A)
Operating Voltage: DC 12V
Color: 6500K Cool White+RGB Color Hybrid
Material: 6063 Aluminum Material
Heat Dissipation Mode: Fan Dissipation
LED Lifetime: 50000 hours
Waterproof: IP68
Ambient Operating Temperature: -45-celsius degree~150 celsius degrees

PACKAGE INCLUDED

2 PCs RGB LED Light Bulbs With Extral Driver
1 PCs Lighting Control Box With Cables
1 PCs Remote Control
2 PCs User Manual

FAQ👉See More

How can I get the right LED bulbs for my vehicle?

Two ways to help you find the right bulbs:
1) Go to SELECT YOUR VEHICLE to select your year make, and model to get the right bulbs for your vehicle.
2) Please contact us at customer@auxbeam.com, and tell us about the year make, and model of your vehicle. Let us know which LED bulb you're interested in, so we can check the fitment and get back to you as soon as possible

ATTENTION

Please allow a 1-3cm (0.4-1.18") difference due to manual measurement and slight color variation for different display settings.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.

2026 New In April

🆕R7 Series 25000LM 70W RGB Remote Control LED Headlight Bulb/DRL/Fog Light

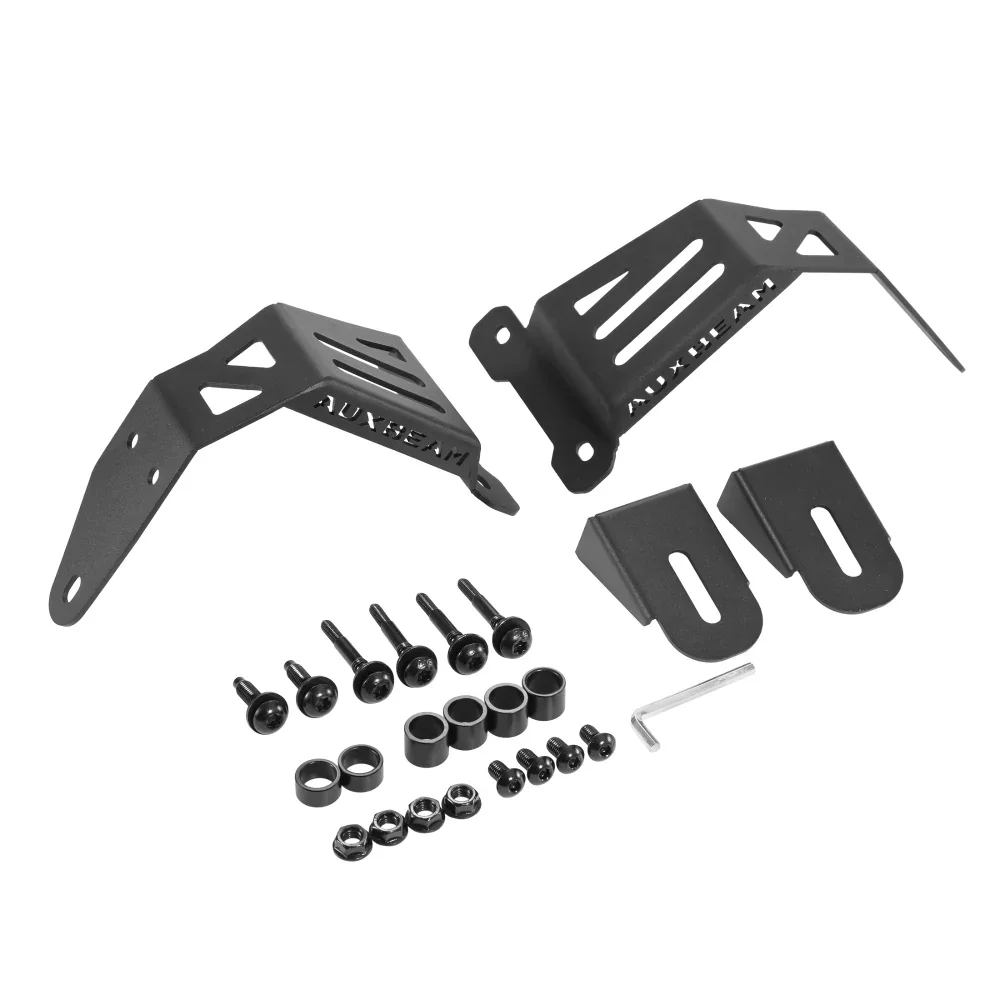

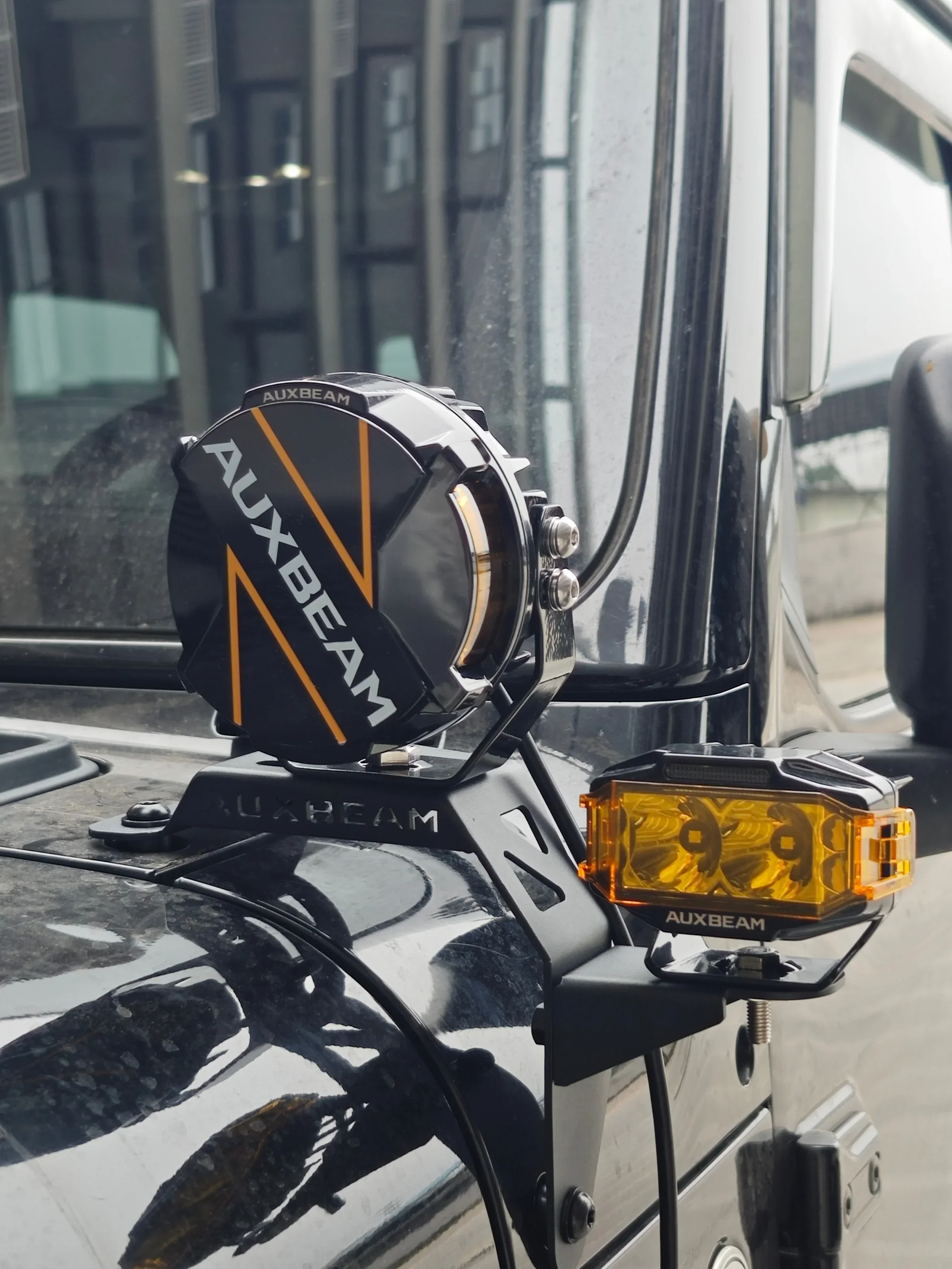

(2pcs/set) Dual A-Pillar Pods Light Mount Brackets for Jeep Wrangler JL 2018-2025
